Web Application Architecture: An Overview

Web application architecture refers to a web-like structure comprising several interconnected software components. This comprehensive structure encompasses vital elements like servers, databases, user interfaces, programming languages, and how they interact. These components work together to develop desirable functionality and user experience, ultimately delivering desirable web applications.

The preliminary objective at the heart of the web application architecture is to ensure that all these software components establish interaction accurately. This is pivotal to ensure that the web application architecture functions seamlessly, guaranteeing a robust web application.  It encompasses the intricate interactions between different components, meticulously outlining technologies and tools employed throughout the development and deployment phases of the web application development process. Adherence to these principles ensures optimal digital experience and user satisfaction.

Looking to start a business or build an app? Let us build it for you- Speak to the experts at OpenXcell for Web Development Services!

Web Application Architecture Diagram

Web-Application-Architecture-Diagram

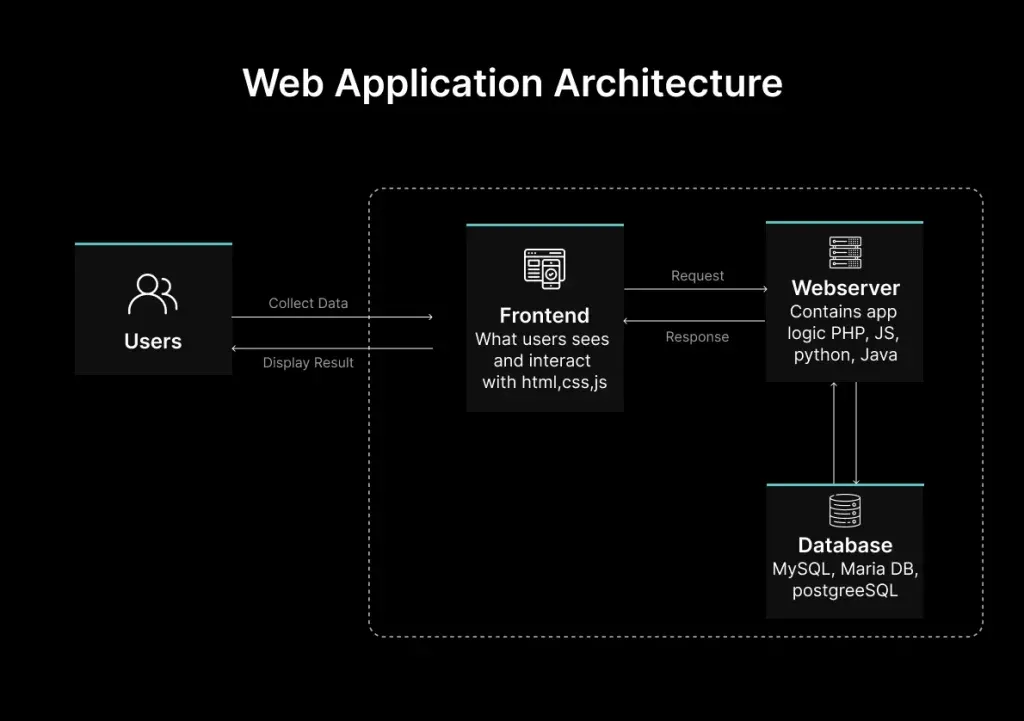

A Web Application Architecture Diagram provides a visual representation of the key components, interactions, and layers within the architecture of a web application. It serves as a blueprint that helps developers, architects, and stakeholders understand how different parts of the system work together to deliver a functional and efficient web application.

The Web Application Architecture Diagram is a visual aid that facilitates discussions about the architecture, aids in troubleshooting and serves as documentation for both technical and non-technical stakeholders. It is crucial for designing, communicating, and maintaining a robust web application infrastructure.

Components of Web Application Architecture


Web application architecture comprises three core components. Below mentioned are the three primary components:-

a) Web browser ( Client)

A web browser serves as a pivotal front-end or client-side component. It acts as a medium for receiving user input and delivering presentable logic, ultimately shaping the output during interaction with the user. In this dynamic interplay between the user and applications output, web application plays a fundamental role in empowering effective interaction in the web application ecosystem.

b) Web application Server – (Contains app logic PHP, JavaScript, Python, Java)

The web server is the backend or server-side component responsible for managing presentational logic and processing user requests. With these robust capabilities, the web server routes the requests to their respective component and simultaneously manages the entire application of the operations. The web server enables diverse components and guarantees a better user experience within the web application environment.

c) Database server- (MySQL, MariaDB, PostgreSQL )

The database server emerges as an indispensable entity, providing vital data for the application functionality. Moreover, it manages data-related tasks and business logic by utilizing stored procedures. With this expertise, the database server fortifies the web application ecosystem by facilitating a robust foundation for data management.

How Does the Web App Architecture Work?

To better understand how the Web Application Architecture works, we need to comprehend how they are utilized in executing the most basic action- receiving and responding to a web request.

There are two basic parts to every application:-

1) Client-side code is located on the user’s machine and comprises HTML, CSS, and JavaScript.

2) Server-side code contains the logic to handle transactions and respond to HTTP requests.

Both client-side (front-end) and server-side (back-end) determine how the components collaborate and work together to offer the desired functionality and user experience.

Client-side code and server-side code communicate using standardized protocols, such as HTTP. The server processes user requests, performs operations, and sends back responses. The interaction can be synchronous or asynchronous, depending on the application’s nature and technologies.

Contemporary web applications often leverage a dynamic ecosystem of cutting-edge databases comprising load balancers, content delivery systems, and caching layers. These components collectively empower to enhance scalability, performance, and reliability through data storage management, traffic redirection, and content delivery optimization. All these together develop a smooth user experience and encourages innovation.

This is a high-level overview of web app architecture, with variations and additional considerations depending on application requirements and technologies.

Types of Web Application Architecture

Web application architecture is categorized into different types based on the deployment patterns and software development:-

1) Monolithic Architecture

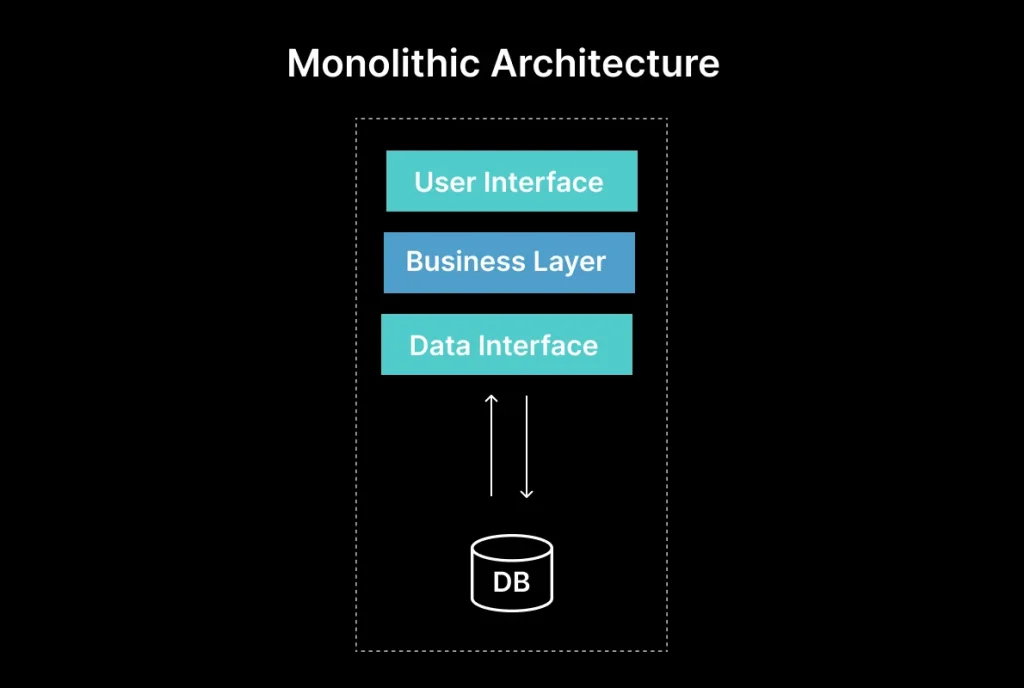

Monolithic Architecture refers to a conventional software development model that embodies developing complete applications as a single, self-contained unit. In this paradigm, every application component is intricately interconnected and interdependent, completely responsible for the execution and operation of the entire application system. On the other hand, for single changes or updates in the application, you must compile or rewrite the whole code.

In this architecture, even a single change or update in the application necessitates the cumbersome task of rewriting or recompiling the entire codebase. Monolithic architecture is suitable for lightweight projects, where the development process begins from scratch with a single program. It involves applying frameworks, scripts, templates and testing. Consequently, the code size expands, posing certain challenges in managing the codebase or implementing new updates.

This architectural structure serves a reliable purpose when you have tight budgets. It is ideally a suitable choice for teams operating at a single location rather than being widely dispersed. The cohesiveness and proximity of locally concentrated teams play a vital role in successfully implementing the monolithic architecture.

2) Microservices

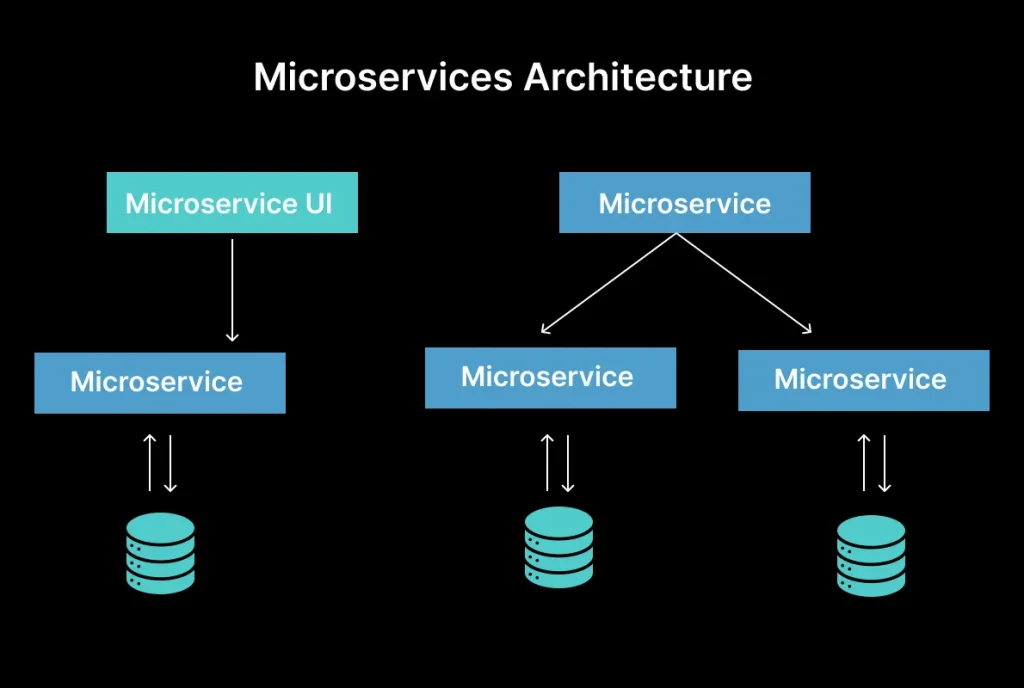

Microservices architecture represents the architectural style that structures the code in loosely coupled and autonomous services. Each Microservice is built on its dedicated database, enabling the implementation of specific business logic and facilitating the development and deployment of independent services with ease. Indeed, as it is a loosely coupled nature, it empowers flexibility to update and modify independent services with ease.

This architectural approach eases the development process, leading to efficient and continuous delivery practices. Microservices allow developers to develop highly scalable and complex applications, catering to the demands of modern software ecosystems.

Deploying multiple services with runtime instances presents a notable challenge. As the number of services increases, so does the complexity of managing them efficiently. On the other hand, microservices apps share partitioned databases, necessitating meticulous attention to ensure consistency across multiple databases. It becomes imperative to ensure that transactions are not inadvertently impacted due to the interconnectivity of the databases.

3) Serverless Architecture

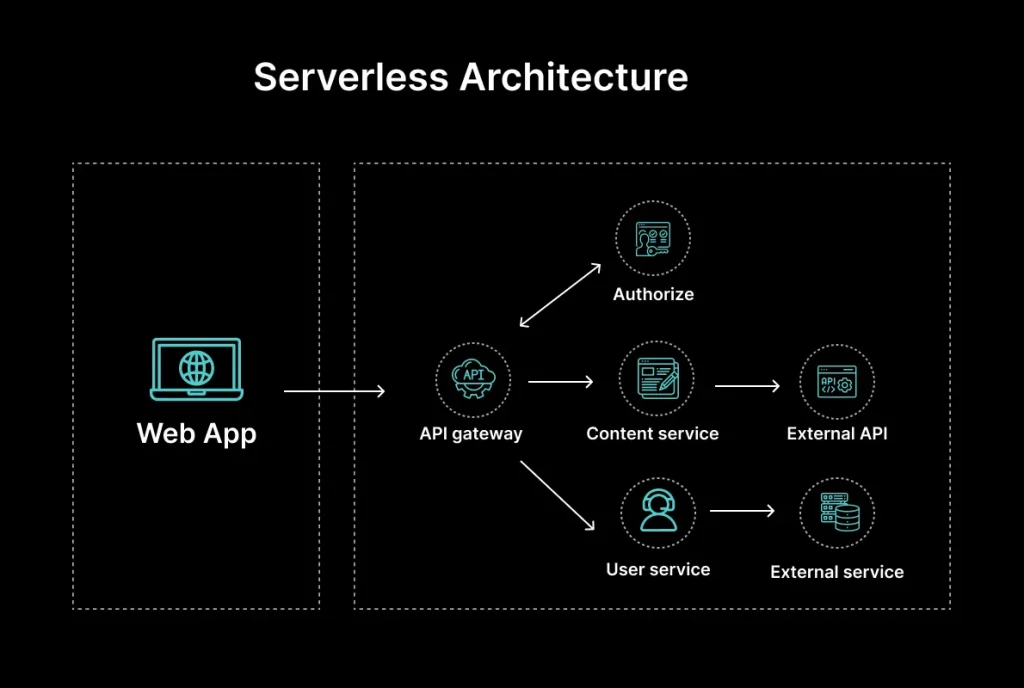

Serverless Architecture is a cloud computing paradigm that empowers developers to build and deploy services without managing the underlying servers or infrastructure. In this dynamic architecture, you must only pay for the infrastructure you consume, making it a cost-efficient solution. The core advantage of serverless computing lies in its demand nature, which ensures that you are charged solely for the execution duration of your application.

The term ‘serverless’ can be slightly misleading, but indeed there are still servers playing an essential role behind the scenes. As a developer, the distinction is that you need not worry about server management. The only thing to focus on is to deliver top-notch applications with greater efficiency and speed.

4) Three-tier

The three-tier architecture is a sophisticated evolution from the traditional two-tier model, a more robust and powerful framework. It consists of a presentation tier, an application tier, and a data tier—this architectural design enhances the scalability and efficiency of contemporary applications.

In this architecture model, the application layer is the system’s dynamic core, which performs a wide array of logical operations. It handles incoming client requests from the presentation layer; this vital tier acts as a gateway, facilitating smooth access to the Database Management System (DBMS).

Importance of Choosing the Right Architecture

Choosing the right architecture is vital in various industries. Below mentioned are a few reasons why selecting the right architecture is important:-

a) Functionality: The architecture of a system determines its functionality and performance. Selecting the right architecture ensures it fulfills its intended functions, especially in software development, resulting in a scalable, maintainable, and robust system. This provides optimal system performance while accommodating future growth.

b) Scalability: The ability of a system to handle increasing workloads and adapt to evolving demands is paramount. An intelligently well-designed architecture empowers organizational growth to scale seamlessly without compromising performance. This strategic approach saves valuable time and resources and positions the system for a long-term success.

c) Performance: Architecture significantly impacts system performance, affecting response time, throughput, and resource utilization. By carefully selecting and implementing the appropriate architecture, businesses can optimize system performance and ensure efficient resource utilization. This leads to enhanced productivity and improved user satisfaction.

d) Maintainability: Maintaining functionality and efficiency becomes paramount as systems evolve. A well-designed architecture simplifies maintenance tasks, reduces complexity, and enhances cost-effectiveness. It enables organizations to understand, modify, and extend the system over time. This ultimately ensures longevity and adaptability to changing requirements.

e) Security: Ensuring robust security is significantly crucial for better architecture. Architectural decisions impact system security, ensuring vulnerability mitigation and protection against potential threats. By Integrating security measures into the design process, organizations can fortify their systems, maintain data integrity, and protect against unauthorized access or malicious attacks.

f) User experience: The architecture of a product or service significantly impacts the overall user experience, considering factors such as usability, accessibility, and interaction. A well-designed architecture ensures a user-friendly system that meets user needs and expectations. By understanding user needs and employing intuitive design principles, enterprises can deliver delightful yet seamless experiences.

g) Cost optimization: Poor architectural decisions detrimentally impact costs, requiring additional resources, causing maintenance issues, or necessitating system rework. Choosing the exemplary architecture optimizes costs by avoiding complexities and ensuring efficient resource utilization. By making informed architectural choices, organizations can gain cost effectiveness, maximize return on investment and allocate resources.

Layers of Web App Architecture

There are three layers of web app architecture:-

a) Presentation layer/ Client Layer

The Presentation Layer serves as a client-side web application architecture component that enables users to interact with the server and backend service using a web browser. A translator channel converts the code into a standardized format that the browser can understand. The process begins with receiving user requests, processing them, forwarding them to data services, and ultimately delivering the required results back to the users.

The Presentation Layer, also known as the Client Layer, comprises various front-end components, such as UI/UX design, layouts, dashboards, configuration settings, and interactive elements. All of these elements are vital to the presentation and user experience of the application.

Below mentioned are the commonly used front-end technologies:

1) HTML

2) CSS

3) JavaScript

4) React

5) Vue.js

6) Angular.js

b) Application layer/ Business Logic Layer

The business logic layer significantly facilitates data exchange; it connects the presentation and data access layers. This layer system encapsulates business logic and processes that govern the applications’ processes and operations.

It consists of servers, databases, web services, and more. This layer ensures the application functions efficiently and smoothly by handling the essential business logic and rules. It acts as a central data processing hub and coordinates various system components.

Below mentioned are the commonly used server-side technologies:

1) Node.Js

2) Java

3) Python

4) PHP Larave

5) GO

6) Ruby

7) .NET

c) Data layer

The data layer in the context of web application architecture refers to the component that handles tasks like storing, retrieving, and managing data for the applications. This function allows users to perform actions such as searching, sorting, filtering, and managing data for the

applications and enables users to derive the required information whenever they need it.

When choosing the database for your web application architecture, it is essential to consider several important factors. These include the size of the data, how quickly it is accessible, its scalability, and the overall structure. SQL-based databases are a good choice for structured data, as they suit financial apps wherein data integrity is vital.

Web Application Architecture Best Practices

Developing a successful web application architecture requires careful consideration of various best practices and principles. Below are the guidelines that guide you to ensure project visibility and responsiveness for specific business needs. Let’s delve into each aspect necessary to look into before getting started with your project.

a) Ensuring clarity for enhanced user experience is crucial for web app structure. Ensure easy navigation to well-organized and reusable code; maintaining clarity is paramount regardless of the app’s complexity. These principles will lead to increased user engagement with greater satisfaction and retention rates.

b) Scalability is crucial for web app architecture, ensuring its adaptability to evolving requirements and business needs. This allows your business to grow and accommodate the increasing traffic and functionality. By assuring your architecture is future-proof, you can minimize the risk of bottlenecks and ensure smooth user experiences, even when the user base increases.

c) Fortifying your web app with novel security standards- Security is a core component of modern web app architecture. High priority must be placed to ensure data protection, reliability, and consistent performance. By adhering to rigorous security standards and employing cutting-edge techniques, your applications are resilient enough to face potential threats, defending user data and brand reputation.

d) Empower your team to be ready for effective error handling- There are many odds of encountering errors, even in the case of robust applications. Hence, error traceability and efficient fixing are invaluable for your tech teams. With the ability to quickly detect, trace, and fix errors without causing major failures, your team can maintain application performance and deliver exceptional user experience.

e) Streamlines productivity through automation- Automating various aspects of your web application lifecycle, such as testing, deployment, maintenance, and support, can improve productivity, reduce mistakes, and optimize costs. By streamlining these processes, your team

can target innovation and quick development for the web app to succeed.

Keeping a tab on the above-mentioned web app architecture best practices one by one will help you verify each approach against your unique project requirements.
